Water Chiller (Water Cooled)
The water chiller is a cooling system that features a low-noise water-cooling method to enhance production efficiency, along with safety and a compact design.
Features of the Water Chiller
- Low Noise level provide maximum productivity and comfortable working environment
- The Cooling efficiency of water is better 10% than air cooling system.(If good coolant is supplied. )
- Compact design.(provision secured)
- Pump Down Type.(Ref.Compressor)
- Perfact safe operation is secured by various protection and safety
- Devices with automatic pre-checking to prevent freezing rupture and or compressor overheating.

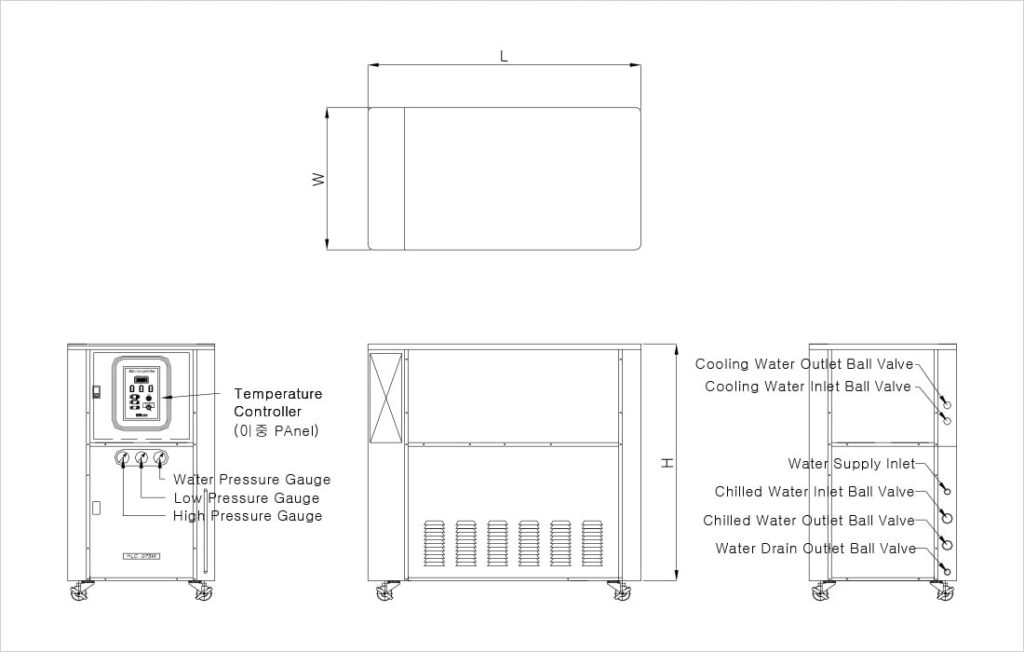

Dimension

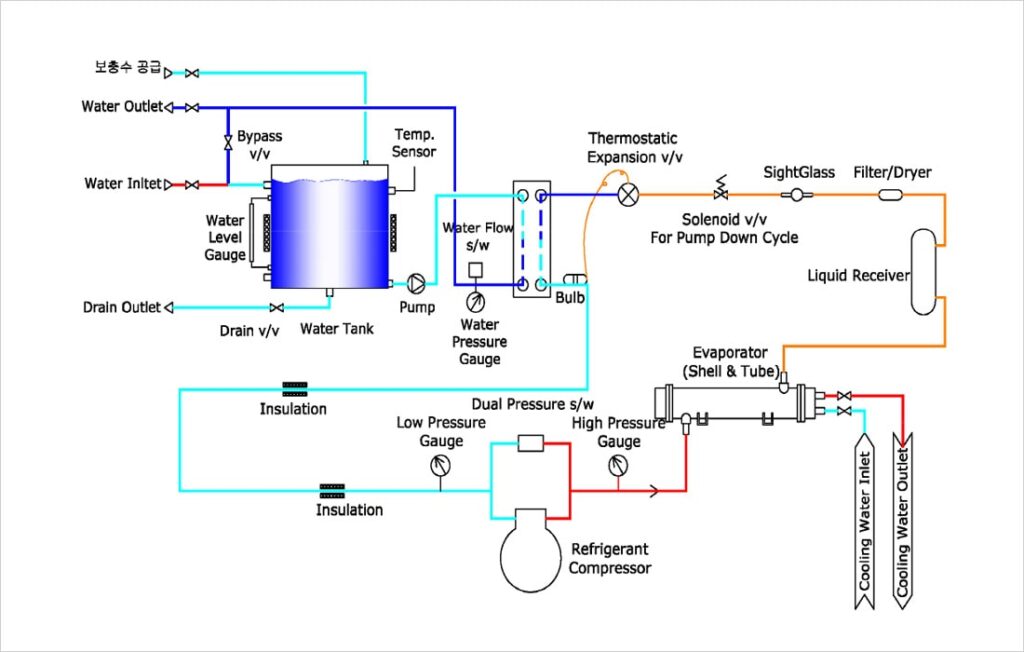

Refrigerant Circuit
Water Chiller Standard Specification
| Model | HYC-1W | HYC-2W | HYC-3W | HYC-5W | HYC-7.5W | HYC-10W | HYC-15W | HYC-20W | HYC-30W | HYC-40W | HYC-50W | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity | BTU/Hr | 11,160 | 22,320 | 33,480 | 55,800 | 83,700 | 111,600 | 167,400 | 223,200 | 334,800 | 446,400 | 558,000 |
| Kcal/hr | 2,800 | 5,600 | 8,400 | 14,000 | 21,000 | 28,000 | 42,000 | 56,000 | 84,000 | 112,000 | 140,000 | |
| Compressor | (KW) | 0.75 | 2.1 | 3.0 | 4.85 | 7.55 | 10.2 | 14.8 | 17.9 | 27.5 | 41.4 | 50.1 |
| Water Pump | (KW) | 0.35 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Water Cooled Condenser |
Condenser (HP) | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 | ||
| Nozzle (In,Out:mm) |
15 | 20 | 20 | 25 | 25 | 32 | 32 | 40 | 50 | 50 | 65 | |
| Flow Volume | (ℓ/min) | 10~20 | 16~60 | 15~83 | 16~83 | 40~100 | 45~150 | 200 | 250 | 300 | 400 | 500 |
| Tank Capacity | (ℓ) | 30 | 40 | 50 | 80 | 100 | 130 | 160 | 250 | 350 | 500 | 600 |
| Nozzle Size (In,Out) |
(A:mm) | 15 | 20 | 20 | 25 | 25 | 32 | 32 | 40 | 50 | 50 | 50 |
| Total Electricity | (KW) | 1.1 | 2.85 | 3.75 | 5.95 | 9.05 | 12.4 | 17.0 | 20.9 | 30.5 | 45.4 | 55.6 |
| Temperature Range (℃) | 5℃ ~ 35℃ | |||||||||||
| Rated Refrigeration Capacity (RT: based on R-407C) | -1 | 0.84 | 1.129 | 2.071 | 2.704 | 3.56 | 5.316 | 6.928 | 11.998 | 15.612 | 18.681 | |
| Power Voltage (V, ￠, Hz) |
AC220V 1￠ 50/60Hz(HYC-010A Model), AC220/380/440V 3￠ 50/60Hz | |||||||||||
| Dimension(WxLxH) | 535x805x872 | 603x1100x1080 | 800x1590x1358 | 900x1770x1701 | 1000x2070x1682 | 1000x2930x1733 | 1100x3230x1903 | 1100x3790x1880 | ||||
Note
- Cooling Capacity @ Et:5℃, Ct:38℃ (Et:Evapolating Temperature, Ct:Condensing Temperature)
- It can be change without notice for technology development and operating condition.It can be change without notice for specifications and appearance by control
