GSA’s compressed air treating equipment turning top air quality
Desiccant
A desiccant used includes carbon molecular sieve (CMS) and zeolite molecular sieve (ZMS) for nitrogen and oxygen production, including activated alumina needed to dehumidify compressed air.
Chemical Formula : Al2O₃
CAS NO. : 1344-28-1

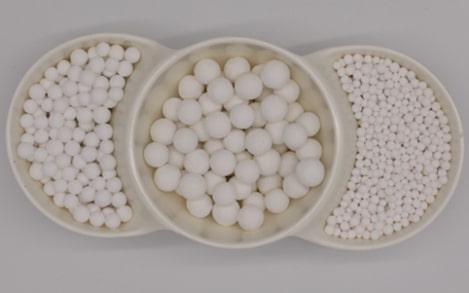

Appearance : white Sphere
– It is made of aluminum oxide (alumina : Al₂O₃)
– Dew Point : below -40℃ @ atm
– Electronics, textile and chemical industries, medical, pharmaceutical and laboratory, automation industries, etc.
| Properties | Unit | GP-1 | GP-2 |
|---|---|---|---|
| Diameter | mm | 4 ~ 6 | 3 ~ 5 |
| Bulk Density | g/ml | ≥ 0.68 | ≥ 0.68 |
| Surface Area | m²/g | ≥ 270 | ≥ 360 |
| Pore Volume | ml/g | ≥ 0.40 | ≥ 0.42 |
| Crush Strength | N/Pc | ≥ 150 | ≥ 120 |
| L.O.I. | wt% | ≤ 8 | ≤ 8 |
| Attrition Rate | wt% | ≤ 0.3 | ≤ 0.3 |
The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
| PACKING | |
|---|---|
| Desiccant Size [mm] | 3A/4A/ 5A/13X |
| Small Packing | 40 kg |
| Large Packing | 120 kg |
